Unit # 1197 1997 Heil 1000 Cubic Foot (3 Hoppers) Dry Bulk Trailer VIN # 5JLSN4224V5T03669 Overall length 42’ Flow cone aeration Aluminum Barrel Aluminum main frame rails Carbon steel end frame rails Rear discharge location 5” discharge valve 4” discharge pipe size (aluminum piping) Single leaf spring suspension Aluminum disk wheels (Hub piloted) 11R24.5 Tires / 3 @ 18/32nds / 1 @ 16/32nds / 2 @ 8/32nds / 2 @ 7/32nds S Cam brakes 60% Pad Life 2 speed landing gear Max Load 58,000 Lbs. GVWR 68,000 Lbs. GAWR All Axles 17,000 Lbs.

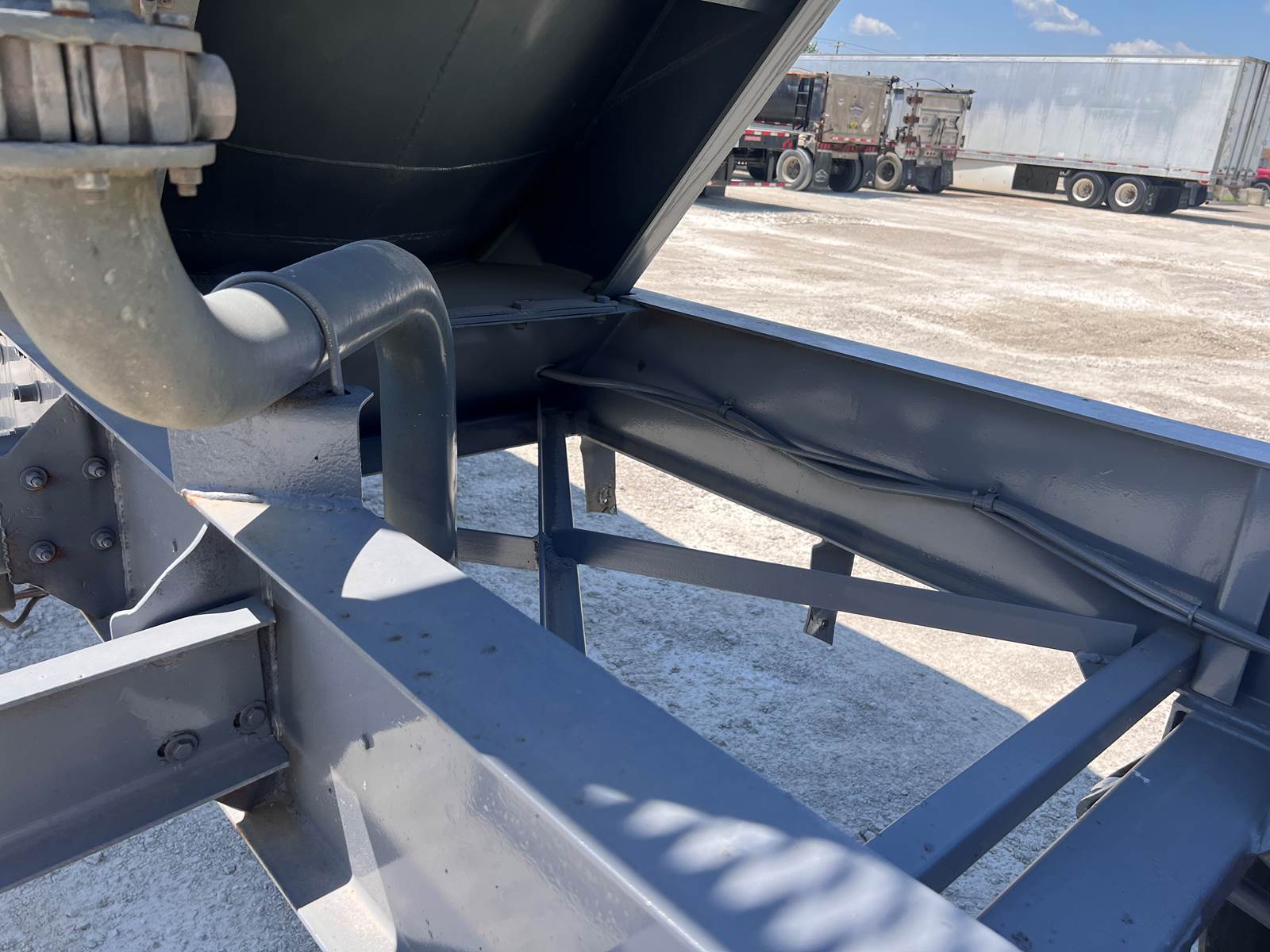

The carbon steel parts on this unit have been sand blasted and painted with a rust inhibiting grey paint. The middle hopper valve at the bottom were it connects to the discharge pipe is bent but it does not leak air. This trailer has been air pressure tested for leaks and the valves and gaskets were checked to make sure that they are in working order.
